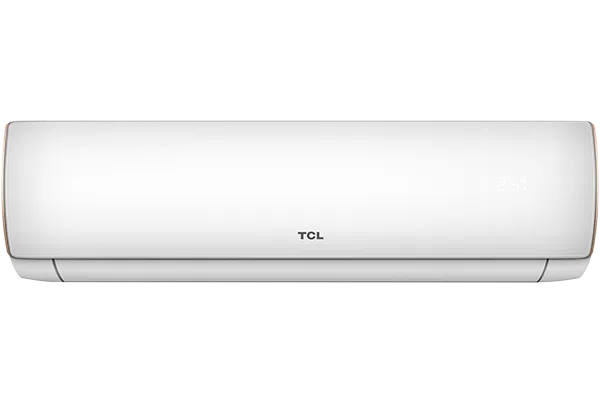

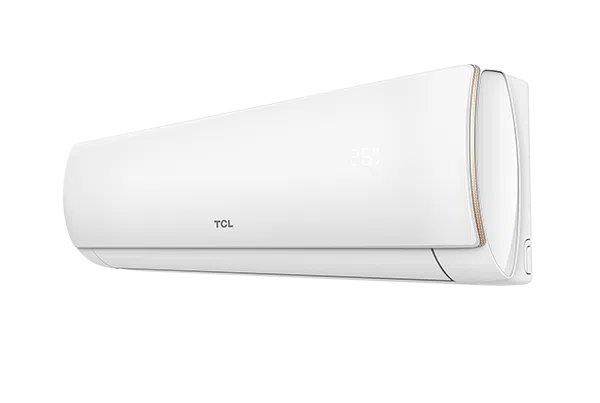

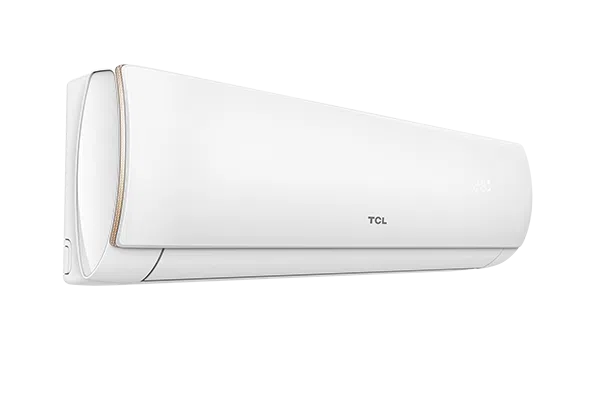

18T3B 2 : TCL DC INVERTER SPLIT

General & Performance Specifications

• Capacity: 1.5 Ton (18,000 BTU/h Cooling & Heating)
• Type: Wall-Mounted Split (Heat & Cool)
• Compressor: Full DC Inverter with T3 high-frequency tropicalized compressor (designed for extreme ambient temperatures up to 52°C–55°C)
• Refrigerant: R410A
• Energy Efficiency Ratio (EER): 3.4 W/W (Up to 40%–60% electricity savings)

Power & Electrical Details

• Rated Voltage / Frequency: 220–240V / 50Hz
• Power Input (Cooling): 300W – 2,500W (up to 2,700W depending on listing)
• Power Input (Heating): 300W – 2,500W
• Running Current (Cooling): 1.4A – 12.0A (or 1.5A start)
• Running Current (Heating): 1.4A – 13.0A (or up to 11.5A–13A)

Dimensions & Weight

• Indoor Unit Dimensions: 1202 x 402 x 302 mm
• Outdoor Unit Dimensions: 890 x 385 x 628 mm
• Indoor Unit Weight: 14 kg
• Outdoor Unit Weight: 32 kg
• Noise Levels: Indoor: 46 dB(A) | Outdoor: 49 dB(A)

Key Features & Functions

• Airflow: Smart 4D Airflow / Quad-directional vector precision air supply (72 angles) with double swing
• Fan Speeds: 5-speed refreshment options
• Humidity Control: Ideal humidity targeting between 40% and 60%
• Smart & Convenience Features: I-Feel smart learning, Smart Memory, Filter Cleaning Reminder, Self-Diagnosis, and Auto Self-Cleaning
• Safety & Build: Fireproof control box safety design, low voltage operation, and power-cut auto-restart
• Display: Hidden LED display with a sleek white finish

Warranty

• Parts: 1 Year
• PCB: 4 Years
• Compressor: 10 Years
