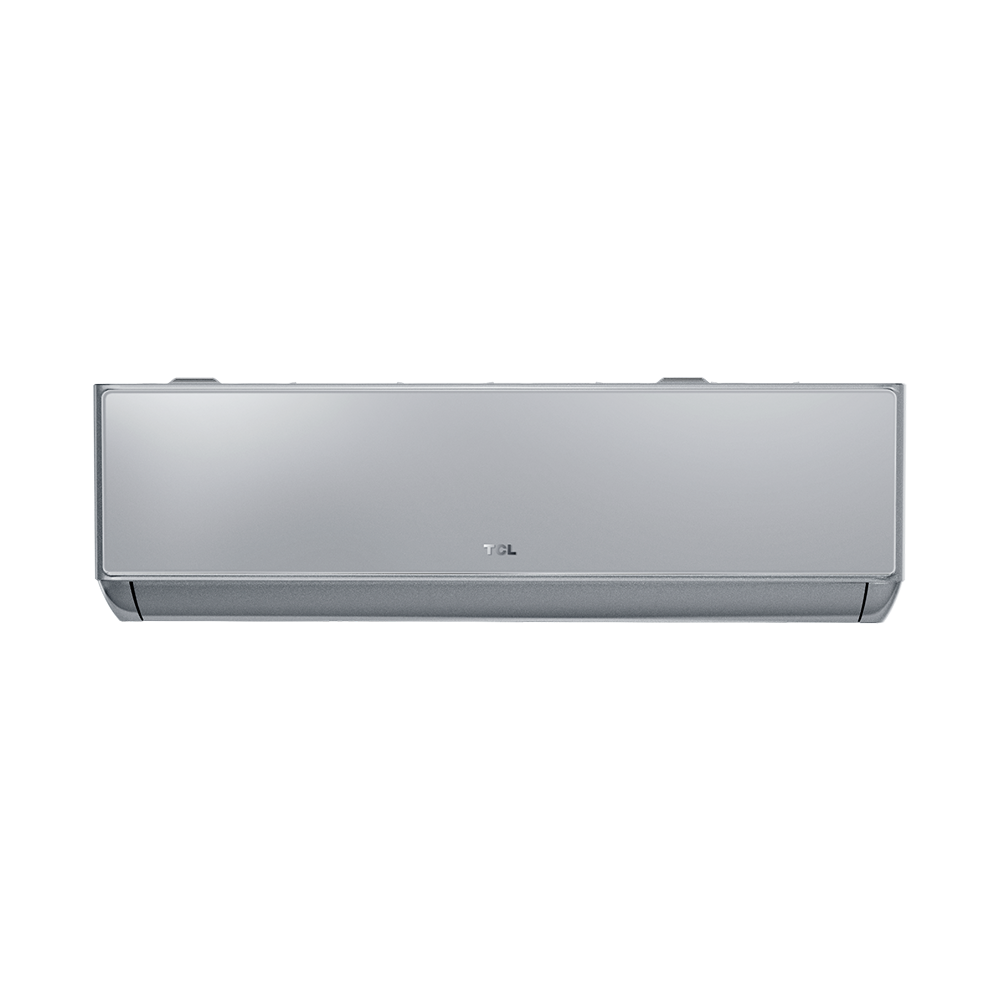

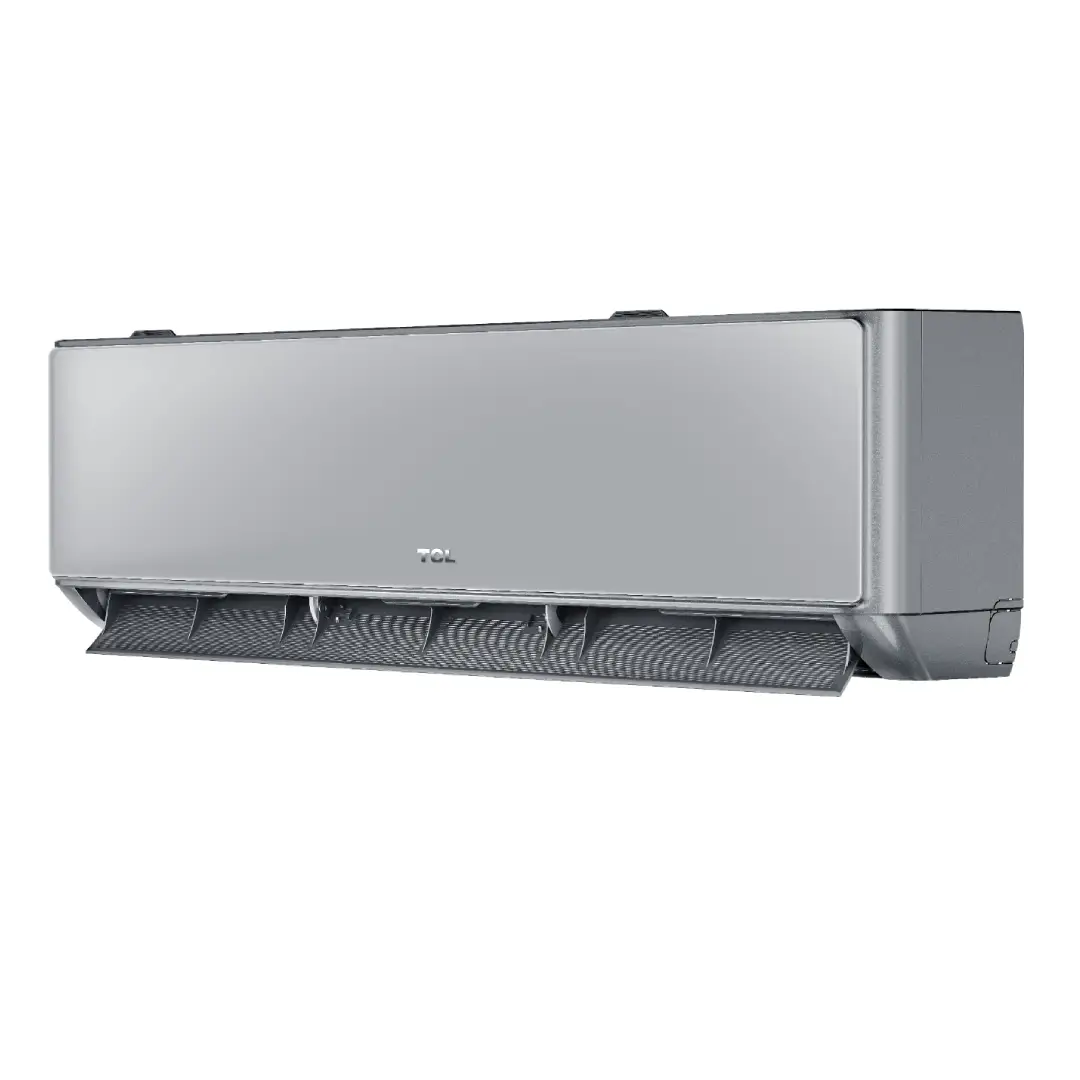

18T5 SMT S : TCL DC INVERTER SPLIT

General & Performance Specs

• Brand / Model: TCL TAC-18T5-SMT-S
• Type: Full DC Inverter (Heat & Cool)
• Capacity: 1.5 Ton
• Compressor: T3 Climate Compressor (built for extreme heat)
• Cooling Capacity: 18,000 BTU (range: 4,000 – 19,500 BTU)
• Heating Capacity: 19,000 BTU (range: 5,100 – 19,800 BTU)
• Power Input (Cooling): 1,600 W (range: 300 – 2,700 W)
• Power Input (Heating): 1,450 W (range: 300 – 2,500 W)
• Running Current (Cooling): 7.3 A (range: 1.4 – 12.1 A)
• Running Current (Heating): 6.7 A (range: 1.4 – 13.0 A)
• Energy Efficiency Ratio (EER): 3.32 w/w
• Refrigerant: R410A

Smart & Control Features

• Wi-Fi Connectivity: IoT-enabled via the TCL Home App
• Smart Functions:
    • I FEEL (smart temperature sensing from the remote)
    • Generator Mode (power consumption limiting)
    • Eco Mode
• Airflow: 4-Way Smart Air Flow
• Maintenance & Health: Deep Clean / Self-Cleaning system, filter cleaning reminder, and leakage detection

Physical & Noise Specifications

• Indoor Unit Dimensions: 1095 x 327 x 235 mm
• Outdoor Unit Dimensions: 853 x 349 x 602 mm
• Indoor Net Weight: 15 kg
• Outdoor Net Weight: 32 kg
• Indoor Noise Level: ~46 dB(A)
• Outdoor Noise Level: ~49 – 58 dB(A)
• Color / Finish: Silver

Warranty

• Compressor: 10 Years
• PCB Kit: 4 Years
• Parts: 1 Year
