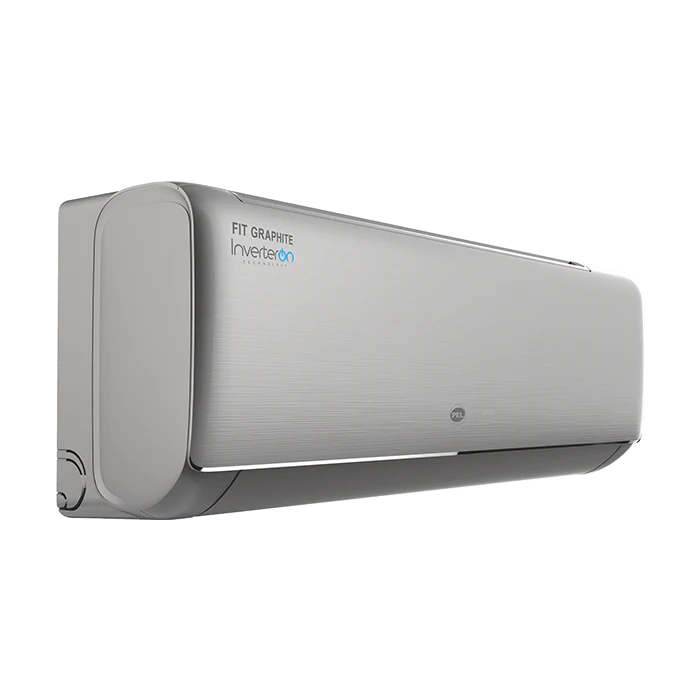

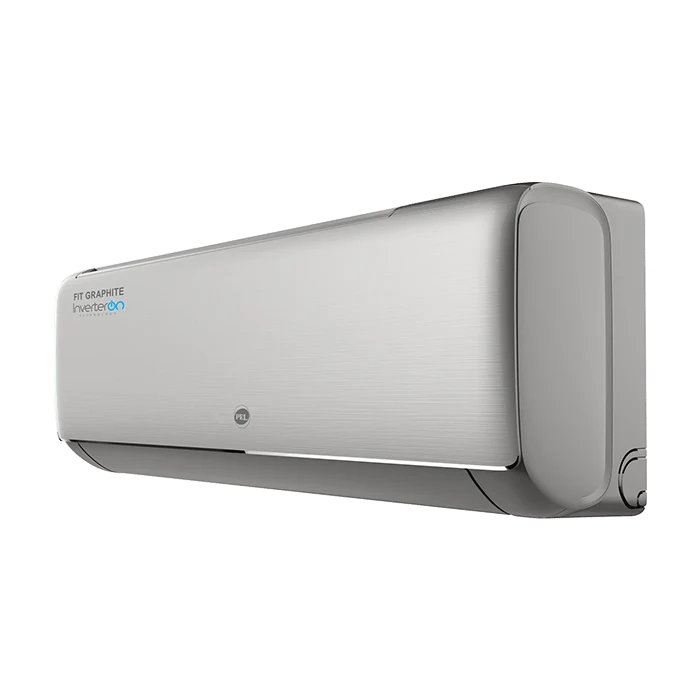

18K FIT GRAPHITE : PEL DC INVERTER SPLIT

General & Performance Specs

• Brand & Model: PEL InverterOn 18K Fit Graphite T3 (H&C)
• Product Type: Split DC Inverter Air Conditioner
• Capacity: 1.5 Ton / 18,000 BTU
• Operation Mode: Heat & Cool
• Compressor Type: T3 Tropical Rotary Compressor
• Cooling Capacity: 5100W (Range: 1300–5700W)
• Heating Capacity: 5300W (Range: 1300–5500W)
• Cooling Power Consumption: 1730W (Range: 290–2100W)
• Heating Power Consumption: 1470W (Range: 250–1800W)
• Cooling Running Current: 8.2A (Range: 2.2–9.3A)
• Heating Running Current: 7.6A (Range: 2.0–8.0A)
• Maximum Input Power / Current: 2400W / 12A
• Energy Efficiency Ratio (EER): 3.0 EER
• Energy Saving: Up to 75%

Electrical & Refrigerant

• Power Supply: 220–240V / 1Ph / 50Hz
• Low Voltage Start-Up: Starts smoothly at down to 140V
• Refrigerant: Eco-friendly R32 (900g charge)
• Solar Compatibility: Yes

Build & Airflow Features

• Air Flow Volume: 950 m³/h with 4D Smart Airflow
• Coil Material: 100% Pure Copper
• Condenser / Evaporator Protection: Golden Fin
• Self-Cleaning: Yes (Auto-clean & moisture elimination)
• Maximum Operating Temperature: Up to 52°C+ (Tropical T3 design)

Physical Dimensions & Weight

• Indoor Unit Dimensions (WxDxH): 952 × 310 × 227 mm
• Outdoor Unit Dimensions (WxDxH): 785 × 300 × 555 mm
• Indoor Unit Net Weight: 11.5 kg
• Outdoor Unit Net Weight: 28 kg
• Indoor Noise Level: 47 dB(A)
• Outdoor Noise Level: 57 dB(A)

Warranty

• Compressor: 10 Years
• PCB Kit: 4 to 5 Years (varies by official dealer terms)
• Parts & Service: 1 Yea
