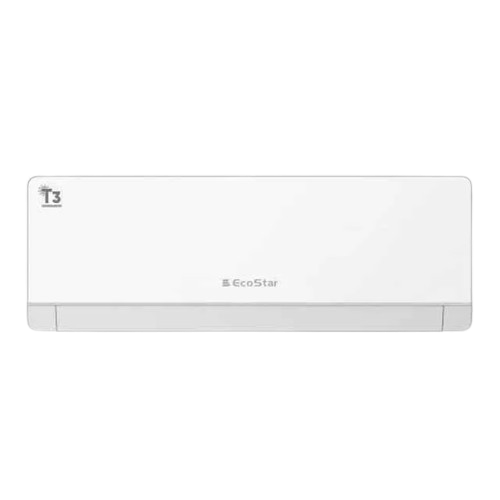

18 AR02WT3 : ECOSTAR DC INVERTER SPLIT

Technical Specifications

Parameter    Specification Details
Capacity    1.5 Ton (18,000 BTU/h nominal)
Cooling Capacity    Max: 22,519 BTU/h | Avg: 18,902 BTU/h | Min: 4,436 BTU/h
Heating Capacity    Max: 20,813 BTU/h | Avg: 18,902 BTU/h | Min: 4,436 BTU/h
Cooling Power Input    Max: 2000W | Avg: 1520W | Min: 500W
Heating Power Input    Max: 1800W | Avg: 1400W | Min: 420W
Compressor Type    Real T3 Tropical Inverter Compressor (operates up to 60°C)
Refrigerant Gas    R32 Eco-Friendly Refrigerant
Airflow    4D Airflow with dual-intake air door
Energy Efficiency    Real 4-Star Rating (Up to 60% energy savings)

Key Features & Technology

• Power Control: 5-Step Power Limit (Ampere Control) allows you to manually lock the electricity consumption level via the remote.
• Quick Start: 65Hz Turbo Startup for ultra-fast cooling and heating.
• Smart Ecosystem: Integrated Intelligent Wi-Fi control via a dedicated application and USB connectivity.
• Hardware Protection: Gold Fin evaporator and condenser paired with an Environment Protecting Anti-Rust Coating. It features intelligent PCB cooling to prevent overheating.
• Solar Power Compatibility: Directly compatible with solar power setups.
• Self-Maintenance: 5th Gen Automatic Washing (Self-Cleaning) with a smart Cleaning Reminder and gas leakage Self-Diagnosis.
• Air Purification: Multi Health Filters installed for particle filtering and fresh air delivery.
• Premium Remote: Bundled with a large LCD remote control featuring an IPX5 waterproof rating.

Warranty Coverage

• Compressor: 10 Years
• PCB Board: 5 Years
• Evaporator: 2 Years
• Parts & Service: 1 Year
