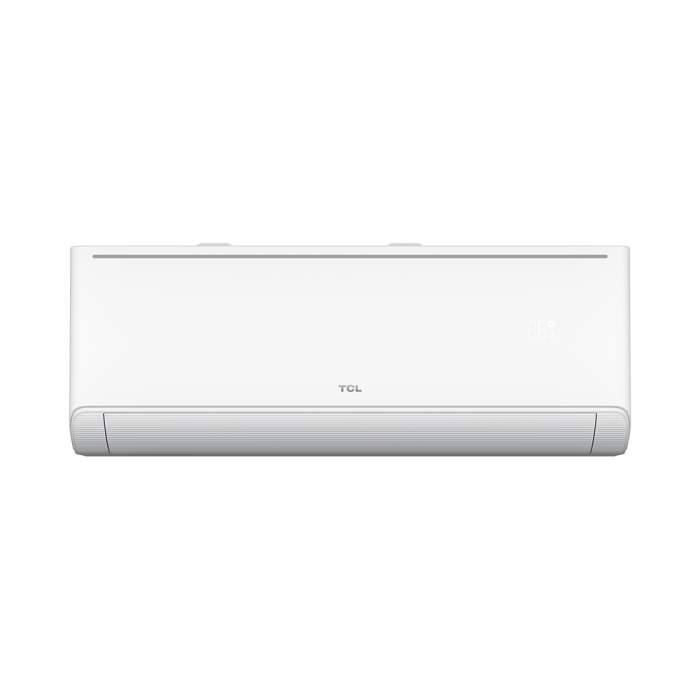

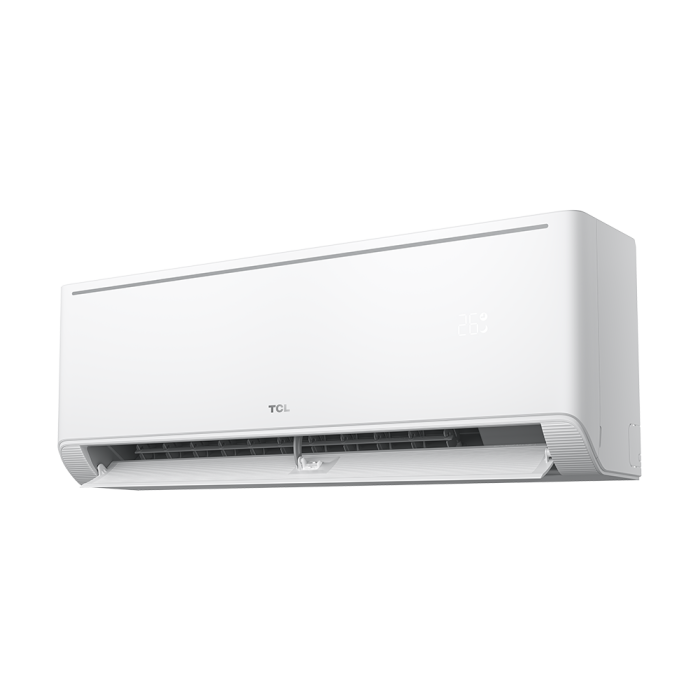

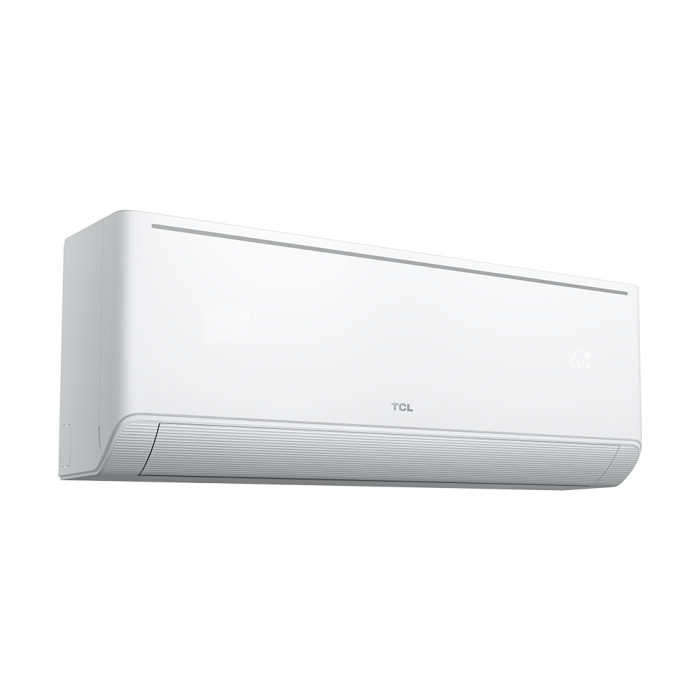

12T3 PRO 11/12/21 : TCL DC INVERTER SPLIT

General Specifications

• Capacity / Size: 1.0 Ton (12,000 BTU)
• Type: Full DC Inverter (Heat & Cool function)
• Cooling Capacity: 12,000 BTU/h
• Heating Capacity: ~12,150 BTU/h
• Recommended Room Size: 150–180 sq. ft.
• Refrigerant: R32

Power & Electrical Details

• Rated Voltage: 220–240V ~ 50Hz
• Cooling Power Input: 215W–1600W (approx. 1100W rated)
• Heating Power Input: 215W–1720W (approx. 970W rated)
• Cooling Running Current: 1.2–7.4A
• Heating Running Current: 1.3–6.5A

Physical & Noise Specifications

• Indoor Air Volume / Flow: 620 m³/h
• Indoor Noise Level: Low noise operation (~44 dB(A))
• Outdoor Noise Level: ~56 dB(A)
• Indoor Unit Weight: 8 kg
• Outdoor Unit Weight: 22 kg
• Display Technology: Hidden LED Display

Key Features & Technology

• Compressor: T3 Tropical Compressor (built for extreme high-ambient temperatures)
• Smart Controls: Built-in IoT Wi-Fi control (TCL Home App) and Voice Control support
• Airflow & Comfort: Gentle Breeze technology, Smart Air Flow, and 4D Air Flow
• Cleaning & Maintenance: 56°C / Multi-level Self-Cleaning technology and easy disassembly
• Additional Modes: Generator Mode, Eco Mode, Smart Memory, Sleep Mode, and OTA Updates
• Filtration: Anti-bacterial / HD filter

Warranty

• Compressor: 10 Years
• PCB Kit: 4 Years
• General / Parts: 1 Year
