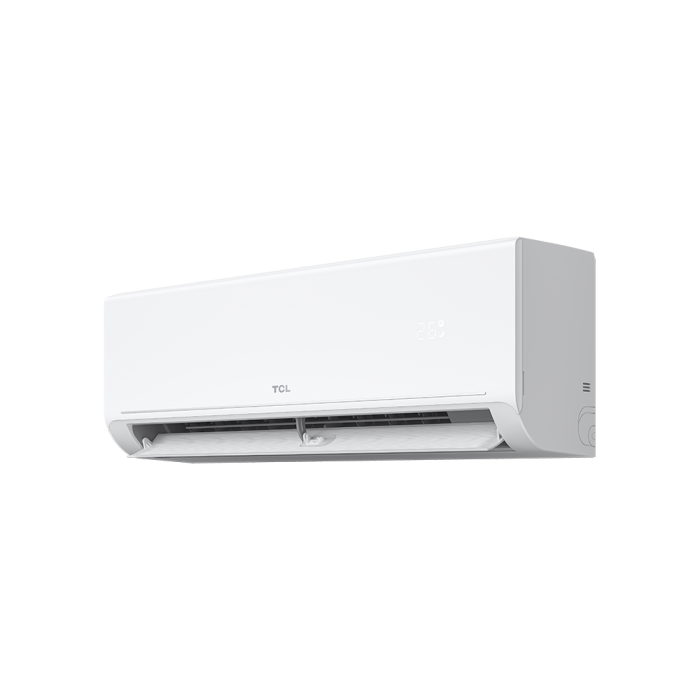

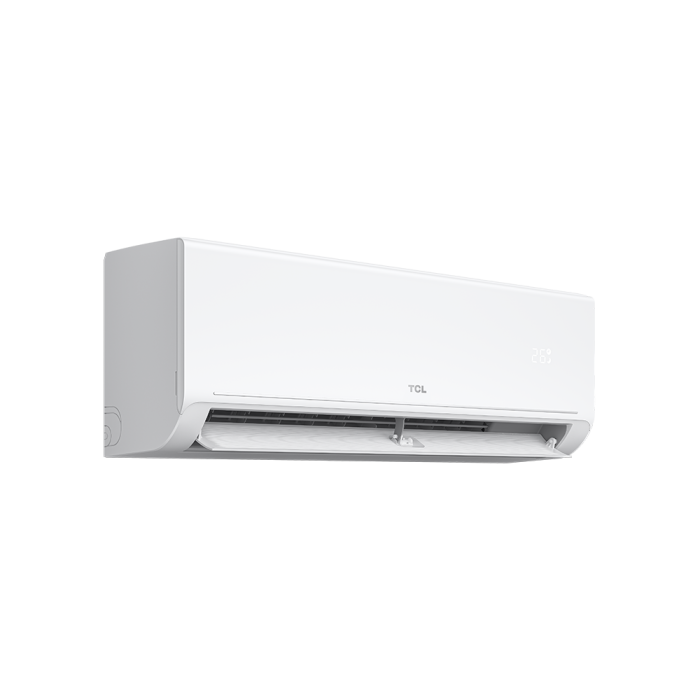

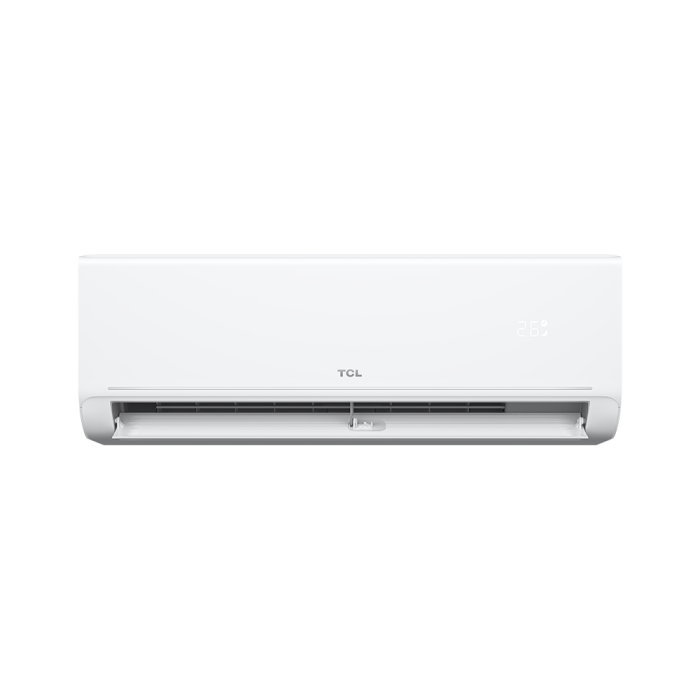

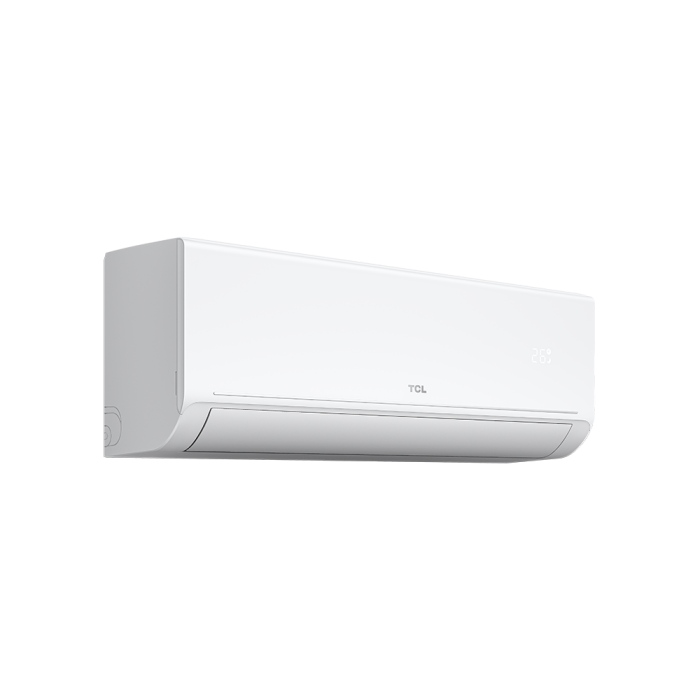

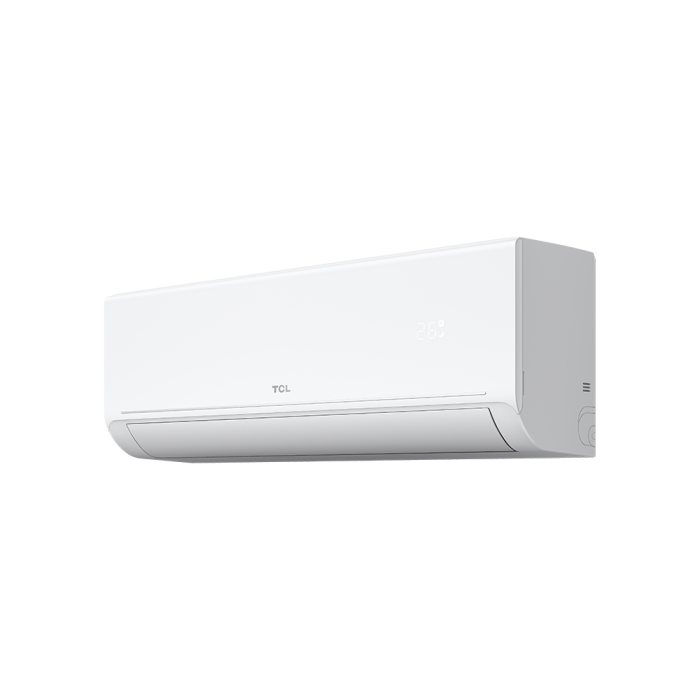

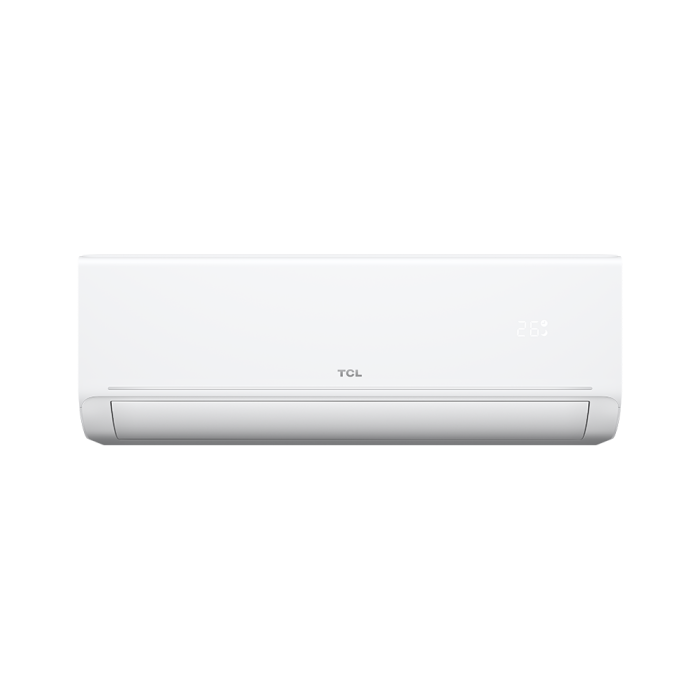

18SVN EX-31W : TCL DC INVERTER SPLIT

General & Performance Specifications

• Brand / Model: TCL TAC-18SVN-EX-31W (SaveIN Extreme Series)
• Type: Wall-Mounted Split Air Conditioner (Heat & Cool)
• Capacity: 1.5 Ton
• Cooling Capacity: 18,500 – 19,000 BTU/h
• Heating Capacity: 18,000 – 20,000 BTU/h
• Inverter Technology: Full DC Inverter with T-AI Energy Saving Chipset
• Refrigerant: Eco-Friendly R32
• Energy Efficiency Ratio (EER): 3.20 W/W
• Climate Rating / Compressor: T3 Tropical Compressor (designed for high ambient temperatures up to 62°C cooling and -20°C heating)

Electrical Specifications

• Power Supply: 220V–240V, 50Hz, Single Phase
• Voltage Range: Low-voltage operation (155V – 265V)
• Power Input (Cooling / Heating): 300 W – 2,500 W
• Running Current (Cooling): 1.4 A – 12 A (or 1.6 – 9.0 A depending on load)
• Running Current (Heating): 1.4 A – 12 A (or 1.7 – 11.0 A depending on load)

Physical & Dimensions

• Color Pattern: White
• Indoor Unit Dimensions: 910 × 305 × 195 mm
• Outdoor Unit Dimensions: 853 × 349 × 602 mm
• Indoor Weight: 9 kg
• Outdoor Weight: 30.5 kg
• Indoor / Outdoor Noise Level: 48 dB(A) / 56 dB(A)

Key Features

• Gen Mode: 3-Level Generator Mode for optimized power management during load shedding
• Airflow: Coanda Airflow Effect and 4D Air Flow
• Self-Cleaning: Indoor Self-Cleaning evaporator function
• Safety & Maintenance: Leakage Detection System and Filter Cleaning Reminder
• Warranty: Typically 10 Years Compressor Warranty
