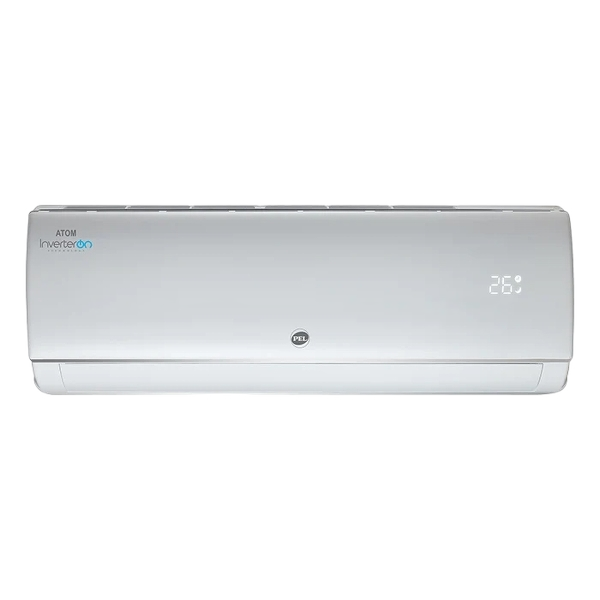

18K ATOM INVERTER : PEL DC INVERTER SPLIT

General & Core Specifications

• Brand: PEL (InverterOn Series)
• Model: PINVO-18K Atom (H&C)
• Capacity / Size: 1.5 Ton (18,000 BTU)
• Type: Split Inverter Air Conditioner (Heat & Cool)
• Color: White
• Compressor: Rotary Compressor
• Refrigerant: R32 Eco-Friendly Gas
• Expansion Device Material: Copper

Cooling & Heating Performance

• Cooling Capacity: 5,280 W (1,300 – 5,860 W)
• Heating Capacity: 5,420 W (1,300 – 6,300 W)
• Cooling Input Power: 1,645 W (420 – 2,500 W)
• Heating Input Power: 1,500 W (420 – 2,500 W)
• Rated Running Current (Cooling): 7.8 A
• Rated Running Current (Heating): 7.1 A
• Rapid Action: Fast cooling in 30 seconds; fast heating in 60 seconds

Electrical & Power Supply

• Power Supply: 220–240V ~ 50Hz / 1Ph
• Voltage Range: 187–265 V (low-voltage operation capability)
• Ampere Lock: 3-stage power adjustment for energy control
• Solar Support: Yes (compatible with solar power integration)
• Energy Saving: Up to 65% energy savings

Noise Levels & Features

• Indoor Noise Level: 44 / 41 / 36 / 30 / 28 dB(A) (multi-speed quiet operation)
• Outdoor Noise Level: 54 dB(A)
• Self-Cleaning: Auto Clean system to eliminate moisture and prevent bacteria
• Coating: Platinum Shield anti-corrosion coating

Dimensions & Weight

• Indoor Unit Dimensions (W x D x H): ~910 x 294 x 206 mm (varies slightly by sub-batch production)
• Outdoor Unit Dimensions (W x D x H): ~795 x 305 x 549 mm
• Indoor Unit Net Weight: Approx. 8.5 – 10 kg
• Outdoor Unit Net Weight: Approx. 24.5 – 26 kg

Warranty

• Compressor: 10 Years
• PCB Kit & Parts: 5 Years
