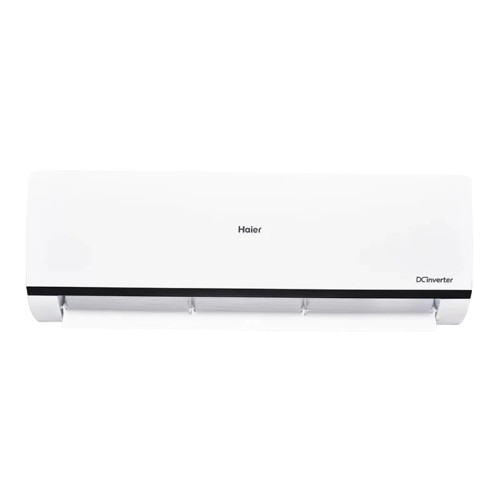

13 HFCP/CA : HAIER DC INVERTER SPLIT

General & Performance Specs

• Capacity: 1 Ton (Heat & Cool)
• Cooling Capacity: 13,000 – 13,300 BTU
• Heating Capacity: 13,500 BTU
• Air Circulation: 700 m³/h
• Inverter Technology: DC Triple Inverter
• Refrigerant: Eco-Friendly R-32 (approx. 750g)
• Color / Display: White finish with Hidden LED Display

Power & Electrical

• Power Supply: 1 Phase / 220V / 50Hz
• Cooling Power Input: 450 W – 1,410 W (0.36 – 1.39 kW)
• Heating Power Input: 450 W – 1,450 W (0.36 – 1.25 kW)
• Cooling Running Current: 2.6 A – 6.6 A
• Heating Running Current: 2.6 A – 6.7 A
• Voltage Range: Wide / Low Voltage Operation (approx. 120V – 260V)

Dimensions & Weight

• Indoor Unit (W / D / H): 850 × 295 × 210 mm
• Outdoor Unit (W / D / H): 700 × 245 × 535 mm
• Indoor Weight: 11.5 kg
• Outdoor Weight: 26 kg
• Noise Level (Indoor H/M/L): 41 / 36 / 33 dB(A)
• Noise Level (Outdoor): 52 dB(A)
• Refrigerant Pipe Size: Liquid side: 6 mm, Gas side: 9 mm (100% Grooved Copper)

Key Features

• UPS Enabled: Can operate during power outages using an additional compatible device/kit.
• Self-Cleaning: One-Touch Cold Expansion self-cleaning technology.
• Ampere Lock / ECO Mode: Energy-saving control options.
• Air Flow: 4-way swing with vertical auto-swing flappers and horizontal auto-swing louvers.
• Convenience: Turbo cooling and heating, built-in Wi-Fi (on select variants like HSU-13HFCS023DC).

Standard Warranty (Pakistan)

• Compressor: 10 Years
• PCB Kit: 4 Years
• Evaporator: 3 Years
• Parts: 1 Year
