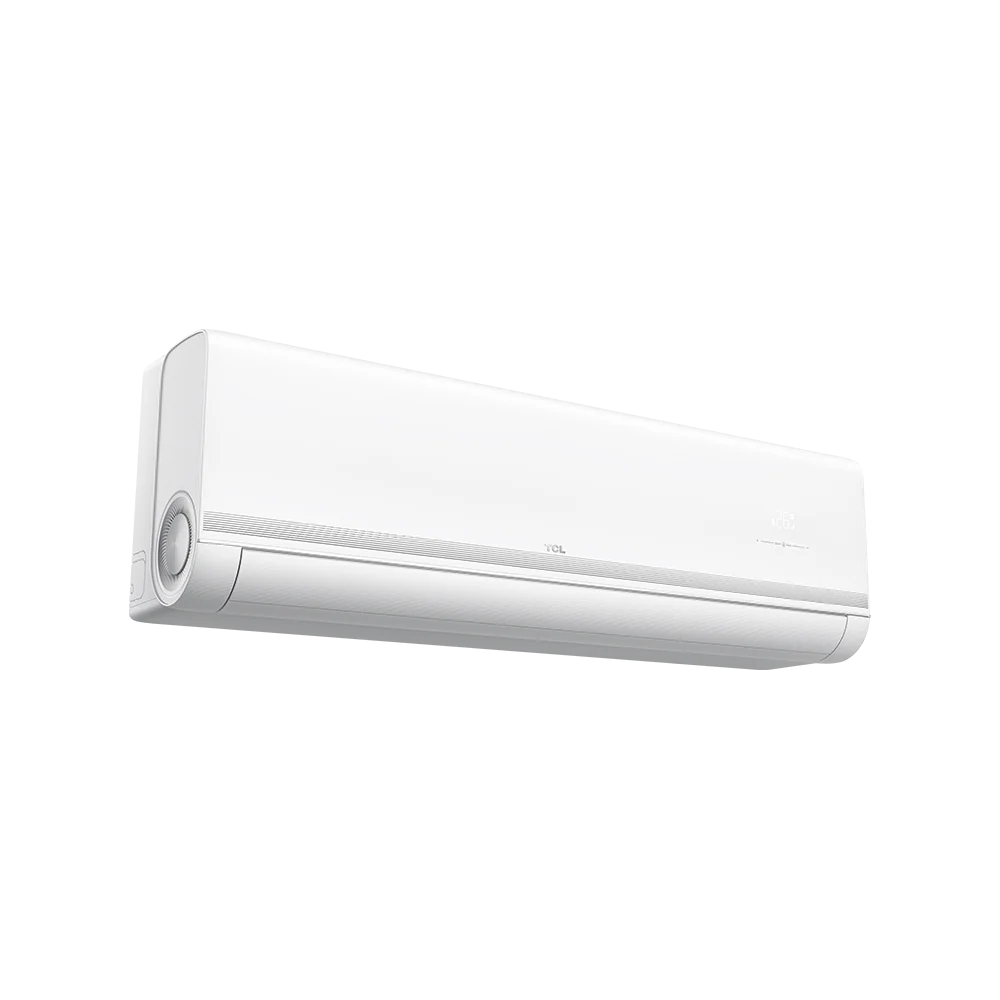

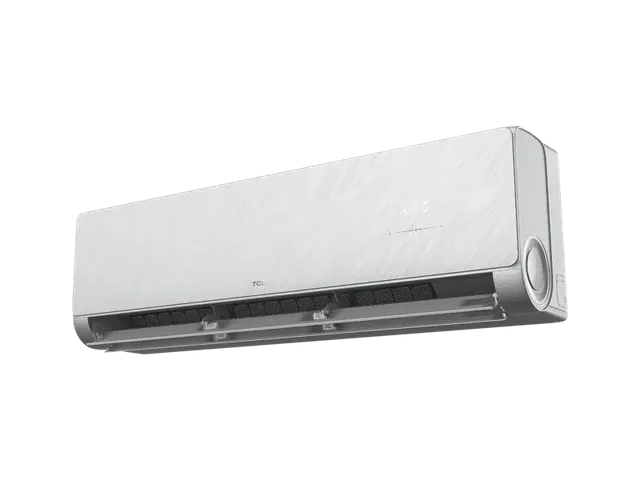

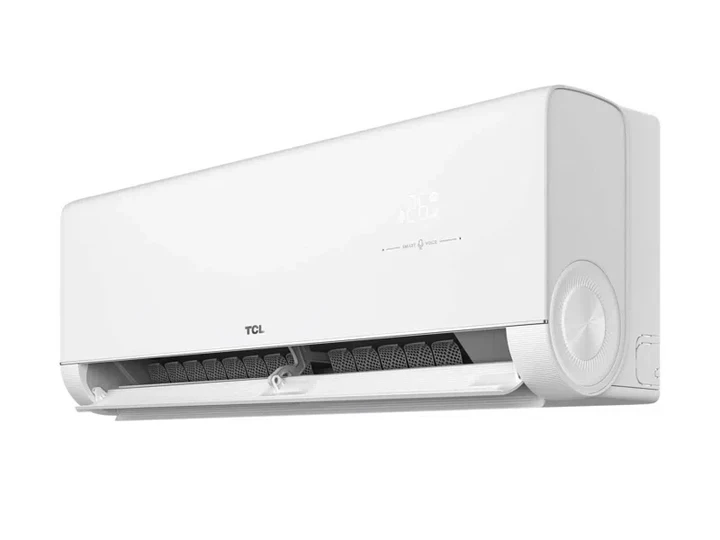

18T5 VOX 13 : TCL DC INVERTER SPLIT

General & Performance Specs

• Brand / Model: TCL TAC-18T5-VOX-13 (VoxIN-13 Series)
• Capacity: 1.5 Ton (19,000 BTU Cooling & Heating)
• Type: Full DC Inverter (DC components for compressor, indoor/outdoor motors, and vane motors)
• Refrigerant: R32 Eco-Friendly Gas
• Extreme Temperature Operation: Cooling up to 65°C and heating down to -20°C
• Compressor: T3 Tropical/Rotary Inverter Compressor
• Energy Efficiency: T-AI Energy Saving Chipset with 6-level Gen Mode
• Energy Efficiency Ratio (EER): 3.70 W/W

Electrical & Power Data

• Power Input (Cooling): 270W ~ 2500W
• Power Input (Heating): 200W ~ 2100W
• Running Current (Cooling): 1.2A ~ 12.0A
• Running Current (Heating): 1.0A ~ 10.0A
• Wide Voltage Startup: Approx. 165V – 265V

Airflow & Comfort Features

• Airflow: 4-Way Airflow with Dual Louvers Design
• Fan System: 108 mm Axial Flow Fan
• Special Airflow Modes: Gentle Breeze / Gentle Cool Wind Technology
• Noise Level: Low noise / Super quiet indoor motor

Smart & Control Features

• Connectivity: Built-in Wi-Fi (via TCL Home App)
• Voice Control: Built-in Offline Voice Command (operates without internet)
• Smart Functions (5E): OTA updates, smart installation, maintenance assistance, self-cleaning, and smart control
• Additional Smart Perks: Electricity usage monitoring, smart learning, arrive/leave mode, and smart memory

Build, Dimensions & Weight

• Indoor Unit Dimensions: 1096 × 333 × 222 mm
• Outdoor Unit Dimensions: 863 × 349 × 602 mm
• Indoor Net Weight: 14 kg
• Outdoor Net Weight: 31 kg
• Coating/Protection: Graphene Fins & TITAN Gold anti-corrosion coating
• Self-Cleaning: Dual indoor and outdoor self-cleaning function
• Display: Hidden LED display with filter cleaning reminder

Warranty

• Compressor: 10 Years
• Parts & Service: 5 Years
